Access Floor Panel

- Access Floor Panel
- SB Tech has constructed the latest and the most advanced facilities and automated system production line and the overall process is strictly quality controlled through real-time monitoring to provide customers with the highest quality.

- Access Floor Panel Products
- Access Floor Panel is widely used in various industries, including semiconductor manufacture facilities, various medical facilities, distribution facilities, data centers, and aviation facilities.

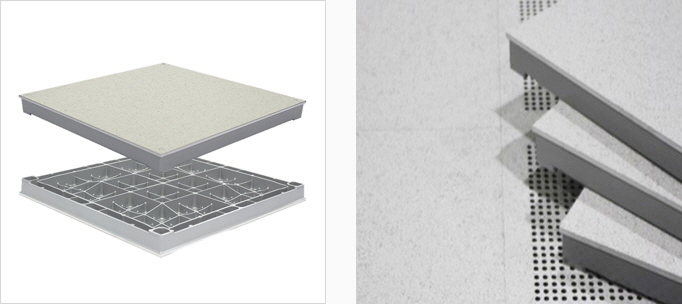

ALUMINUM BLIND PANEL
BLIND PANEL
This is a type of Raised Access Floors that can support the largest load for stable operation of heavy equipment with the development of Hi-tech industries.

This is a type of Raised Access Floors that can support the largest load for stable operation of heavy equipment with the development of Hi-tech industries.
Product Specifications
Super-high density aluminum is forged in a lattice structure or with a unified top to maximize the distribution of load. This is most suitable for the operation of advanced equipment and heavy equipment and allows stable portability, perfect compatibility with the existing products, and easy selection of top finish.
BLIND PANEL
Model
Thickness
Concentrated Load (jgf)
Ultimate Load (kgf)
Note
½ Edge
½ Edge
SB-E3S
32-36T
600
1,500
500mm x 500mm
SB-E3L
39-49T
550
1,400
600mm x 600mm
SB-E3N
39-49T
650
1,600
600mm x 600mm
SB-E3M
39-49T
800
2,000
600mm x 600mm
SB-E4L
44-49T
850
2,000
600mm x 600mm
SB-E4LS
44-49T
850
2,000
600mm x 600mm
SB-E4N
48-49T
1,000
2,300
600mm x 600mm
SB-E4M
48-49T
1,200
2,400
600mm x 600mm
SB-E4E
48-49T
1,500
3,300
600mm x 600mm
SB-E4U
48-49T
1,800
4,000
600mm x 600mm
SB-E4US
48-49T
2,000
4,000
600mm x 600mm
SB-E2N
48-49T
2,700lbs
5,400lbs
24in x 24in
SB-E2M
48-49T
3,306lbs
6,614lbs
24in x 24in
Super-high density aluminum is forged in a lattice structure or with a unified top to maximize the distribution of load. This is most suitable for the operation of advanced equipment and heavy equipment and allows stable portability, perfect compatibility with the existing products, and easy selection of top finish.
Model | Thickness | Concentrated Load (jgf) | Ultimate Load (kgf) | Note |
---|---|---|---|---|
½ Edge | ½ Edge | |||
SB-E3S | 32-36T | 600 | 1,500 | 500mm x 500mm |
SB-E3L | 39-49T | 550 | 1,400 | 600mm x 600mm |
SB-E3N | 39-49T | 650 | 1,600 | 600mm x 600mm |
SB-E3M | 39-49T | 800 | 2,000 | 600mm x 600mm |
SB-E4L | 44-49T | 850 | 2,000 | 600mm x 600mm |
SB-E4LS | 44-49T | 850 | 2,000 | 600mm x 600mm |
SB-E4N | 48-49T | 1,000 | 2,300 | 600mm x 600mm |
SB-E4M | 48-49T | 1,200 | 2,400 | 600mm x 600mm |
SB-E4E | 48-49T | 1,500 | 3,300 | 600mm x 600mm |
SB-E4U | 48-49T | 1,800 | 4,000 | 600mm x 600mm |
SB-E4US | 48-49T | 2,000 | 4,000 | 600mm x 600mm |
SB-E2N | 48-49T | 2,700lbs | 5,400lbs | 24in x 24in |
SB-E2M | 48-49T | 3,306lbs | 6,614lbs | 24in x 24in |

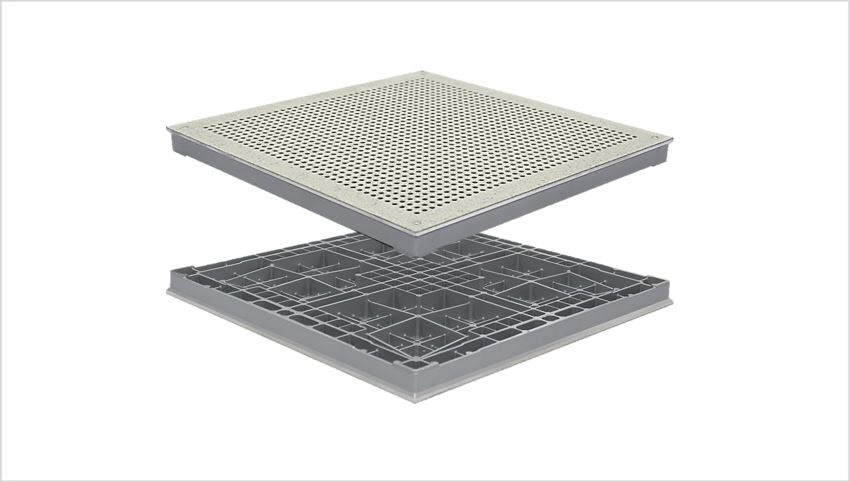

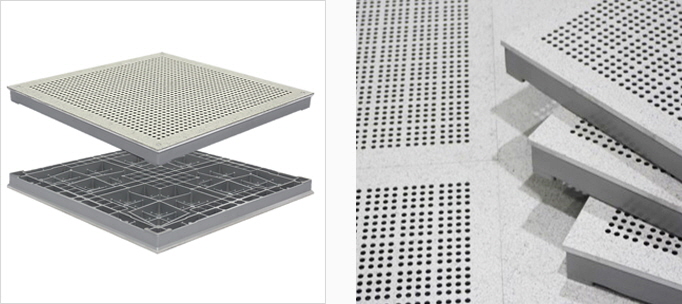

ALUMINUM PERFORATED PANEL
PERFORATED PANEL
Used to operate the Air Flow System in the Clean Room. The top is perforated after forging with super-high density aluminum to maintain perfect conductivity even after boring holes.

Used to operate the Air Flow System in the Clean Room. The top is perforated after forging with super-high density aluminum to maintain perfect conductivity even after boring holes.
Product Specifications
Installed at places that requires wind control or appropriate load. The open ratio may vary according to hole size and AL. Damper allows minimum open ratio.
PERFORATED PANEL
Model
Thickness
Concentrated Load (jgf)
Ultimate Load (kgf)
Open Ratio
Note
½ Edge
½ Edge
SP-E3S
32-36T
500
1,300
500mm x 500mm
SP-E3L
39-49T
500
1,300
20%
600mm x 600mm
SP-E3N
39-49T
600
1,500
20%
600mm x 600mm
SP-E3M
39-49T
700
1,800
20%
600mm x 600mm
SP-E4L
44-49T
800
1,900
18%
600mm x 600mm
SP-E4LS
44-49T
800
1,900
18%
600mm x 600mm
SP-E4N
48-49T
1,000
2,200
18%
600mm x 600mm
SP-E4M
48-49T
1,200
2,300
20%
600mm x 600mm
SP-E4E
48-49T
1,500
3,200
18-20%
600mm x 600mm
SP-E4U
48-49T
1,600
3,800
18-20%
600mm x 600mm
SP-E4US
48-49T
2,000
3,800
18-20%
600mm x 600mm
SP-E2N
48-49T
2,500lbs
5,100lbs
18-20%
24in x 24in
SP-E2M
48-49T
3,086lbs
6,393lbs
18-20%
24in x 24in
Installed at places that requires wind control or appropriate load. The open ratio may vary according to hole size and AL. Damper allows minimum open ratio.
Model | Thickness | Concentrated Load (jgf) | Ultimate Load (kgf) | Open Ratio | Note |
---|---|---|---|---|---|
½ Edge | ½ Edge | ||||
SP-E3S | 32-36T | 500 | 1,300 | 500mm x 500mm | |
SP-E3L | 39-49T | 500 | 1,300 | 20% | 600mm x 600mm |
SP-E3N | 39-49T | 600 | 1,500 | 20% | 600mm x 600mm |
SP-E3M | 39-49T | 700 | 1,800 | 20% | 600mm x 600mm |
SP-E4L | 44-49T | 800 | 1,900 | 18% | 600mm x 600mm |
SP-E4LS | 44-49T | 800 | 1,900 | 18% | 600mm x 600mm |
SP-E4N | 48-49T | 1,000 | 2,200 | 18% | 600mm x 600mm |
SP-E4M | 48-49T | 1,200 | 2,300 | 20% | 600mm x 600mm |
SP-E4E | 48-49T | 1,500 | 3,200 | 18-20% | 600mm x 600mm |
SP-E4U | 48-49T | 1,600 | 3,800 | 18-20% | 600mm x 600mm |
SP-E4US | 48-49T | 2,000 | 3,800 | 18-20% | 600mm x 600mm |
SP-E2N | 48-49T | 2,500lbs | 5,100lbs | 18-20% | 24in x 24in |
SP-E2M | 48-49T | 3,086lbs | 6,393lbs | 18-20% | 24in x 24in |

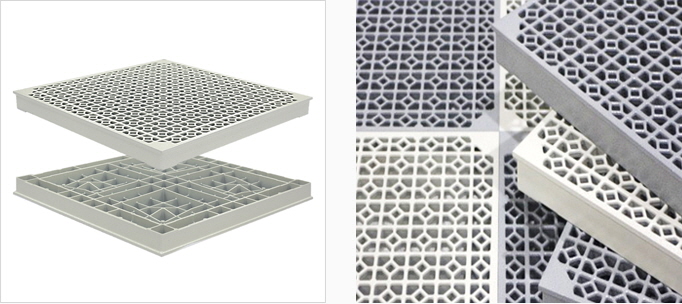

ALUMINUM GRATED PANEL
GRATED PANEL
This product secures over 50% open ratio to prevent problems caused by heat or cool air that may occur after setting up Hi-tech equipment. It can be installed around equipment or at the traffic route for smooth air flow.

This product secures over 50% open ratio to prevent problems caused by heat or cool air that may occur after setting up Hi-tech equipment. It can be installed around equipment or at the traffic route for smooth air flow.
Product Specifications
Installed at places that requires wind control or appropriate load. The open ratio may vary according to hole size and AL. Damper allows minimum open ratio.
GRATED PANEL
Model
Thickness
Concentrated Load (jgf)
Ultimate Load (kgf)
Open Ratio
Note
½ Edge
½ Edge
SG-E3M
41-51T
700
1,900
51%
600mm x 600mm
SG-E4N
50-51T
1,000
2,200
51%
600mm x 600mm
SG-E2N
50-51T
2,200lbs
4,400lbs
51%
24in x 24in
Installed at places that requires wind control or appropriate load. The open ratio may vary according to hole size and AL. Damper allows minimum open ratio.
Model | Thickness | Concentrated Load (jgf) | Ultimate Load (kgf) | Open Ratio | Note |
---|---|---|---|---|---|
½ Edge | ½ Edge | ||||
SG-E3M | 41-51T | 700 | 1,900 | 51% | 600mm x 600mm |
SG-E4N | 50-51T | 1,000 | 2,200 | 51% | 600mm x 600mm |
SG-E2N | 50-51T | 2,200lbs | 4,400lbs | 51% | 24in x 24in |
